Reversible metamorphosis from Fe3O4 to FeO of epitaxial iron oxide films grown on the Fe-p(1 × 1)O surface

M. Capra, A. Lodesani, A. Brambilla, M. Finazzi, L. Duò, F. Ciccacci and A. Picone* Department of Physics, Politecnico di Milano, p.za Leonardo da Vinci 32, I-20133 Milano, Italy. E-mail: andrea.picone@polimi.it

First published on 19th March 2021

Introduction

Iron oxides have been investigated for decades in several scientific disciplines, spanning physical chemistry1-3 to medicine.4 Owing to the different oxidation states assumed by Fe cations, Fe2+ or Fe3+, iron oxides can form various phases, with different stoichiometries and physical properties. Wüstite FeO is an antiferromagnetic insulator crystallizing in a rock salt lattice, where only Fe2+ cations are present. Magnetite Fe3O4 is a ferrimagnet containing a mixture of Fe2+ and Fe3+ ions, which assumes an inverse spinel structure. Above the Verwey transition temperature (Tv ∼ 120 K), Fe3O4 is a half metal, while below Tv it is insulating. Haematite (α-Fe2O3) adopts a corundum structure containing Fe3+ ions in octahedral sites. The stoichiometric α-Fe2O3, below 955 K, is an antiferromagnetic insulator.

The surface science paradigm, i.e. the preparation of well-defined model systems under highly controlled conditions, is the most appropriate to investigate the detailed atomic structure and chemical composition of oxide surfaces.5-8 Thin and ultra-thin Fe oxide films supported on metallic substrates like Pt,9,10 Ag,11,12 Fe,13,14, Ni,15,16 have been investigated by using this approach. After these investigations, it has been recognized that also new phases, with stoichiometries and physical properties deviating from those occurring in bulk samples, can be stabilized in epitaxial films with a thickness of few monolayers.17

The interconversion from one phase to another, depending on parameters like temperature and oxygen partial pressure, is particularly important, both from fundamental and applied points of view. In this frame, several recent papers describe the redox reactions occurring on iron oxide samples: Freindl et al. found that Fe2O3 films grown on Pt(111) can be reversibly reduced to Fe3O4 by annealing in vacuum,18 while Tang et al. reduced a bulk Fe2O3 sample to Fe3O4 by Ar ion sputtering followed by annealing.19 Jiang et al. investigated by means of ambient pressure scanning tunneling microscopy the effects induced by oxygen and carbon monoxide exposure on FeO(111) nano-islands grown on Au(111).20

The redox reactions occurring on FeyOx layers change drastically their physical and chemical properties, affecting the performances of the devices in which they are integrated. In heterogeneous catalysis, during the reaction the oxidation state of Fe oxide can be modified and influence the catalyst performances. For example, the oxidation of FeO films grown on Pt(111) induces the formation of a O-Fe-O trilayer, which is a key factor to activate the FeO/Pt(111) catalyst for low temperature CO oxidation.21,22 In exchange bias systems, where Fe is interfaced with an antiferromagnetic oxide, often the formation of Fe oxides is observed.23-25 The thermal treatments performed on the layered structure, such as the heating before the field cooling process, can induce redox reactions26-28 and affect the device properties. In magnetic tunnel junctions, often there is a thin FeyOx layer at the interface between the Fe electrodes and the MgO barrier, which can affect the device transport characteristics.29

In this paper we analyze the effect of annealing and oxygen exposure on an epitaxial Fe3O4 film grown on a Fe-p(1 × 1)O surface. The Fe-p(1 × 1)O sample is characterized by a single layer of oxygen atoms accommodated in the hollow sites of the Fe(001) surface and can be considered as a single layer of iron monoxide compressed by the underlying metal.30-33 The Fe-p(1 × 1)O passivated surface is more stable than the clean Fe(001) surface against the oxidation, thus it is an ideal template for the growth of Fe oxide in an oxygen atmosphere on a well-defined substrate.5 Our experiments show that the iron oxide films can be switched reversibly from Fe3O4 and FeO by cycles of high temperature annealing and exposure to molecular oxygen.

Experimental details

The experiments have been performed in an ultra-high vacuum (UHV) chamber, at a base pressure of 10−10 mbar. The Fe(001) substrate was obtained by growing in situ a thick Fe film, about 500 nm, on a MgO(001) substrate. The Fe-p(1 × 1)O surface was obtained by following a well-established procedure, exposing the Fe(001) sample to 30 L of molecular oxygen (O2) and annealing in UHV to 800 K for 5 minutes.5 Fe3O4 films were grown by evaporating Fe in a 10−6 mbar O2 atmosphere, with the sample kept at 500 K during the deposition, as measured by a thermocouple positioned close to the sample. The Fe deposition rate was about 1 nm min−1, as evaluated by a quartz microbalance. The film thickness was estimated to be about 50 nm. The heating rate during the annealing was on average 1 K s−1, while during the cooling of the sample was about −2 K s−1. In the experiments where the reduction of Fe3O4 was induced, the films were annealed at 800 K in UHV with the same annealing and cooling rates used during the Fe3O4 growth. The scanning tunneling microscopy (STM) measurements were performed in situ by using an Omicron variable temperature STM. The images were acquired at room temperature in constant-current mode with tips obtained by electrochemical etching of W wires.

The Auger electron spectroscopy (AES) and low-energy electron diffraction (LEED) measurements performed by means of an Omicron SPECTALEED with a retarding field analyzer (total acceptance angle 102°). The primary energy of the electron beam for AES measurements was 3 keV.

Results and discussion

Fig. 1 displays the LEED images acquired after each preparation step of iron oxide samples. Fig. 1(a) shows the diffraction pattern characteristic of the Fe-p(1 × 1)O surface, corresponding to a real space square lattice with a lattice parameter equal to ap(1×1) = 2.86 Å. After the Fe deposition in O2 atmosphere, the LEED pattern in Fig. 1(b) indicates the presence of a p(2 × 2) reconstruction with respect to the Fe-p(1 × 1)O lattice. This pattern is attributed to the formation of a bulk-terminated Fe3O4(001) surface, which is characterized by a lattice parameter of about 0.59 nm. The stabilization of Fe3O4(001) is supported also by the AES and STM data presented in the following. The subsequent UHV annealing at 800 K lifts the p(2 × 2) phase and a square lattice similar to that of the Fe-p(1 × 1)O substrate appears in Fig. 1(c), although with different spot intensities and unit mesh dimensions. A quantitative evaluation of the ratio between the real space lattice parameter of the annealed sample (aann) and that of Fe-p(1 × 1)O yields to . This observation is consistent with the formation of a FeO(001) surface, for which the nominal lattice parameter of the primitive cell is about 3.07 A. The oxidation of the FeO(001) sample kept at 500 K restores the p(2 × 2) reconstruction [see Fig. 1(d)], attributed to the Fe3O4(001) surface.

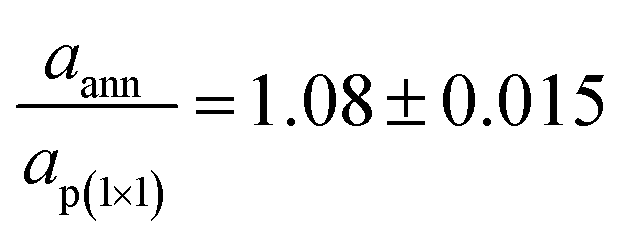

It is worthwhile to mention that, for the Fe3O4(001) surface, a square unit mesh with a lattice constant of 0.843 nm is often reported, both in bulk magnetite samples34 and epitaxial films.35 This phase, which corresponds to a reconstruction with respect to the bulk-terminated Fe3O4(001) surface, has been attributed to different causes, such as for instance oxygen vacancies in the topmost layer35 or electronic ordering.34 Recently, the commonly accepted model ascribes the phase to subsurface cation vacancies.36 In our case, we measure a surface lattice parameter of about 0.6 nm, which is consistent with an unreconstructed Fe3O4(001). The LEED images, acquired with a primary beam energy ranging from 50 eV to 200 eV in steps of 25 eV, do not display any extra spot due to the reconstruction. Recently, the primitive Fe3O4(001) surface has been observed in experiments where the samples were kept at high temperature37,38 or after the deposition of atoms belonging to different species.39 In our case, the samples have been grown at 500 K in oxygen atmosphere, but the LEED and STM measurements have been performed at room temperature, therefore our results cannot be directly related to those of ref. 37 and 38. Further investigations are needed to rationalize the absence of the phase.

Fig. 2(a) and (b) show the AES data acquired at high and low kinetic energies, respectively. The comparison of the intensities of the Fe LMM transitions with those of the O KLL peaks allows one to quantitatively estimate the chemical composition of the samples. On the Fe-p(1 × 1)O substrate, which is characterized by a single layer of oxygen atoms, the ratio between the O KLL peak and the Fe LMM peak at 650 eV is (O/Fe650)p(1×1) = 0.43. After the reactive deposition of Fe in a O2 atmosphere, the ratio increases to (O/Fe650)grown = 3.86, consistent with the formation of a thick iron oxide film. After UHV annealing, the ratio decreases to (O/Fe650)ann = 2.89, suggesting a reduction of the film. The quantity , which quantifies the relative stoichiometries of the as-grown and annealed films, provides a value of 1.33, in excellent agreement with that expected for a reduction from Fe3O4 to FeO. Finally, the O/Fe650 ratio increases again to a value of 3.63 after O2 exposure, pointing towards a recovery of the original magnetite film. The Auger peak at low kinetic energy reported in Fig. 2(b) corresponds to the MVV transition, which is particularly sensitive to the oxidation state of Fe atoms.40,41 The bottom spectrum of Fig. 2(b) acquired on the Fe-p(1 × 1)O is dominated by the peak of metallic Fe, with a minimum located at 46 eV. Additionally, another feature is visible at lower kinetic energy, partially superimposed onto the metal peak, which can be assigned to the presence of a single layer of iron oxide on the surface.5 The spectrum taken on the as-grown Fe3O4 is characterized by two features at about 42 eV and 51 eV. Upon the formation of FeO, these features shift at lower energies by 1.3 eV and 0.8 eV, respectively. Moreover, a small shoulder appears at about 35 eV. The spectrum acquired on the recovered Fe3O4 sample is identical to that of the as-grown magnetite.

Fig. 3 illustrates the large-scale topography of the substrate [panel (a)], the as deposited Fe3O4 [panel (b)] and the FeO surface [panel (c)]. On the Fe-p(1 × 1)O sample, wide terraces separated by multiatomic steps are present, due to oxygen-induced bunching of Fe(001) steps.31 The step density along the (110) direction is about 0.7 × 10−2 nm−1. The line profile drawn in Fig. 3(a) crosses a bi-layer step [a monoatomic step in Fe(001) is 0.14 nm high], as visible in the topographic curve reported in Fig. 3(b). After the Fe3O4 growth, the surface morphology is characterized by a higher density of steps, about 2.5 × 10−2 nm−1 along the (110) direction, which are highly oriented along either the (001) or (010) crystallographic direction of the substrate. Panel (d) displays the line profile acquired across Fe3O4 terraces. Considering that the interlayer spacing between layers with the same termination is 0.21 nm, the measured topography corresponds to bunches of two and three steps of magnetite. The mesoscopic morphology of FeO reported in Fig. 3(e) is very similar to that of Fe3O4 in terms of steps density, orientation and height. The line profile drawn in Fig. 3(f) corresponds approximatively to a two-layer high step along the [001] direction of the rock-salt FeO [a monoatomic step in FeO(001) is 0.215 nm high].

It should be emphasized that, on the FeO samples, it was possible to obtain stable STM images only at high tip-sample voltage (above 2 V). Conversely, on Fe3O4 it was possible to measure also with small sample-tip bias, in agreement with the insulating and conductive nature of FeO(001) and Fe3O4(001) surfaces, respectively.

On the Fe3O4, thanks to the good electrical conductivity of the surface, it was also possible to obtain atomically resolved images, shown in Fig. 4(a). The atomic corrugation is dominated by periodic rows with an apparent height of about 0.3 Å and separated by about 6 Å, as measured from the topographic line of Fig. 4(b). The rows belonging to different terraces are mutually rotated by 90°. These observations are similar to those reported for the reconstructed Fe3O4(001) surface of bulk sample and ultrathin films,1 despite we do not observe the superstructure in the LEED measurements, as already mentioned above. In Fig. 5 a highly resolved image is displayed, in which elongated features are present. In order to rationalize the structural data acquired by LEED and STM, the right panel of Fig. 5 reports a schematic model of the unreconstructed Fe3O4(001), which is characterized by a square unit cell compatible with the diffraction pattern measured by LEED. We suggest that, in our STM measurements, dimers of oxygen atoms separated by the octahedral Fe row are imaged as bright ovals, while the octahedral Fe atoms are imaged as depressions. We notice that our STM images of Fe3O4 differ noticeably from those reported in most of the literature, where the Fe cations are imaged as protrusions, despite there are reports in which anions are imaged as bright spots.42

In order to discuss the Fe3O4-FeO interconversion we recall that both phases are characterized by an oxygen face-centered-cubic lattice and differ only for the cation disposition. The Fe cations completely occupy the octahedral sites in FeO, while in magnetite there are Fe3+ in tetrahedral sites and a 50:50 mixture of Fe3+ and Fe2+ in octahedral sites. During the reduction of Fe3O4 to FeO oxygen atoms should be removed by the annealing and/or additional cations added to the iron oxide lattice. Generally, the UHV annealing of Fe3O4 bulk or Fe3O4 films grown on MgO modifies the surface structure but does not induce a complete reduction of magnetite to FeO,35 in agreement with the fact that even at a temperature of 1000 K and pressure of 10−10 mbar the free energies of Fe3O4 and FeO are −96.1 kJ mol−1 and −71.3 kJ mol−1, respectively.43 We suggest that in our case the transformation from Fe3O4 to FeO could be facilitated by additional Fe atoms provided by the Fe(001) substrate. The proximity of a reservoir of Fe atoms can modify the energetic balance, making FeO thermodynamically more stable than Fe3O4. A similar mechanism has been reported by Genuzio et al. in the case of Fe2O3 reduction to Fe3O4, where additional cations were supplied by Fe deposition on hematite.44

Conclusions

Fe3O4(001) films have been grown by reactive molecular beam epitaxy on a Fe-p(1 × 1)O surface. The Fe3O4(001) LEED pattern forms a p(2 × 2) superstructure with respect to the substrate, revealing a surface structure compatible with a bulk terminated Fe3O4(001) sample. Highly resolved STM images have been obtained on magnetite, tentatively assigned to an imaging mode in which oxygen atoms are measured as protrusions. The Fe3O4(001) films can be converted in rock-salt FeO(001) by annealing the sample at 800 K in UHV. The FeO surface is characterized by a p(1 × 1) diffraction pattern with respect to the substrate, with a lattice constant similar to that of bulk Wüstite. The Fe3O4(001) and FeO(001) phases are clearly discernible also by AES, both in the high and low kinetic energy transitions. Finally, it has been shown that the Fe3O4(001) phase can be restored by the oxidation of FeO(001) at high temperature.

Conflicts of interest

There are no conflicts to declare.

References

1. G. S. Parkinson, Iron oxide surfaces, Surf. Sci. Rep., 2016, 71, 272-365 CrossRef CAS.
2. Y. J. Kim, C. Westphal, R. X. Ynzunza, Z. Wang, H. C. Galloway, M. Salmeron, M. A. Van Hove and C. S. Fadley, The growth of iron oxide films on Pt(111): a combined XPD, STM, and LEED study, Surf. Sci., 1998, 416, 68-111 CrossRef CAS.
3. A. Kiejna, T. Ossowski and T. Pabisiak, Gold nanostructures on iron oxide surfaces and their interaction with CO, J. Phys.: Condens. Matter, 2020, 32, 43 CrossRef.
4. T. Zhang, Q. Xu, T. Huang, D. Ling and J. Gao, New Insights into Biocompatible Iron Oxide Nanoparticles: A Potential Booster of Gene Delivery to Stem Cells, Small, 2020, 16, 2001588 CrossRef CAS PubMed.
5. A. Picone, M. Riva, A. Brambilla, A. Calloni, G. Bussetti, M. Finazzi, F. Ciccacci and L. Duò, Reactive Metal-Oxide Interfaces: a Microscopic View, Surf. Sci. Rep., 2016, 71, 32-76 CrossRef CAS.
6. J. Zhang and J. W. Medlin, Catalyst Design Using an Inverse Strategy: From Mechanistic Studies on Inverted Model Catalysts to Applications of Oxide-Coated Metal Nanoparticles, Surf. Sci. Rep., 2018, 73, 117-152 CrossRef CAS.
7. F. P. Netzer and S. Surnev, Oxide Materials at the Two-Dimensional Limit, Springer, 2016, pp. 1-38 Search PubMed.
8. H.-J. Freund, S. Shaikhutdinov and N. Nilius, Model Studies on Heterogeneous Catalysts at the Atomic Scale, Top. Catal., 2014, 57, 822-832 CrossRef CAS.
9. W. Ranke, M. Ritter and W. Weiss, Crystal structures and growth mechanism for ultrathin films of ionic compound materials: FeO(111) on Pt(111), Phys. Rev. B: Condens. Matter Mater. Phys., 1999, 60, 1527 CrossRef CAS.
10. E. M. Davis, K. Zhang, Y. Cui, H. Kuhlenbeck, S. Shaikhutdinov and H. J. Freund, Growth of Fe3O4(001) thin films on Pt(100): Tuning surface termination with an Fe buffer layer, Surf. Sci., 2015, 636, 42-46 CrossRef CAS.
11. M. Lewandowski, T. Pabisiak, N. Michalak, Z. Miłosz, V. Babačić, Y. Wang, M. Hermanowicz, K. Palotás, S. Jurga and A. Kiejna, On the Structure of Ultrathin FeO Films on Ag(111), Nanomaterials, 2018, 8, 828 CrossRef PubMed.
12. G. D. Waddill and O. Ozturk, Epitaxial growth of iron oxide films on Ag(111), Surf. Sci., 2005, 575, 35-50 CrossRef CAS.
13. M. Soldemo, M. Vandichel, H. Grönbeck and J. Weissenrieder, Initial Fe3O4(100) formation on Fe(100), J. Phys. Chem. C, 2019, 123, 16317-16325 CrossRef CAS.
14. N. Spiridis, J. Barbasz, Z. Łodziana and J. Korecki, Fe3O4(001) films on Fe(001): termination and reconstruction of iron-rich surfaces, Phys. Rev. B: Condens. Matter Mater. Phys., 2006, 74, 35406 CrossRef.
15. A. Lodesani, A. Picone, A. Brambilla, M. Finazzi, L. Duò and F. Ciccacci, 3-Dimensional nucleation of Fe oxide induced by a graphene buffer layer, J. Chem. Phys., 2020, 152, 054706 CrossRef CAS PubMed.
16. Y. S. Dedkov, A. Generalov, E. Voloshina and M. Fonin, Structural and electronic properties of Fe3O4/graphene/Ni(111) junctions, Phys. Status Solidi RRL, 2011, 5, 226-228 CrossRef CAS.
17. T. Yang, T. Song, M. Callsen, J. Zhou, J. W. Chai, Y. P. Feng, S. J. Wang and M. Yang, Atomically Thin 2D Transition Metal Oxides: Structural Reconstruction, Interaction with Substrates, and Potential Applications, Adv. Mater. Interfaces, 2019, 6, 1801160 CrossRef.
18. K. Freindl, J. Wojas, N. Kwiatek, J. Korecki and N. Spiridis, Reversible oxidation-reduction of epitaxial iron oxide films on Pt(111): magnetite-hematite interconversion, J. Chem. Phys., 2020, 152, 054701 CrossRef CAS.
19. Y. Tang, H. Qin, K. Wu, Q. Guo and J. Guo, The reduction and oxidation of Fe2O3(0001) surface investigated by scanning tunneling microscopy, Surf. Sci., 2013, 609, 67-72 CrossRef CAS.
20. Y. Jiang, Y. Zhu, D. Zhou, Z. Jiang, N. Si, D. Stacchiola and T. Niu, Reversible oxidation and reduction of gold-supported iron oxide islands at room temperature, J. Chem. Phys., 2020, 152, 074710 CrossRef CAS PubMed.
21. Y.-N. Sun, Z.-H. Qin, M. Lewandowski, E. Carrasco, M. Sterrer, S. Shaikhutdinov and H.-J. Freund, Monolayer iron oxide film on platinum promotes low temperature CO oxidation, J. Catal., 2009, 266, 359-368 CrossRef CAS.
22. Y.-N. Sun, L. Giordano, J. Goniakowski, M. Lewandowski, Z.-H. Qin, C. Noguera, S. Shaikhutdinov, G. Pacchioni and H.-J. Freund, The interplay between structure and CO oxidation catalysis on metal-supported ultrathin oxide films, Angew. Chem., Int. Ed., 2010, 49, 4418-4421 CrossRef CAS PubMed.
23. E. Młyńczak, P. Luches, S. Valeri and J. Korecki, NiO/Fe(001): magnetic anisotropy, exchange bias, and interface structure, J. Appl. Phys., 2013, 113, 234315 CrossRef.
24. P. Luches, V. Bellini, S. Colonna, L. Di Giustino, F. Manghi, S. Valeri and F. Boscherini, Iron Oxidation, Interfacial Expansion, and Buckling at the Fe/NiO(001) Interface, Phys. Rev. Lett., 2006, 96, 106106 CrossRef CAS PubMed.
25. A. Brambilla, A. Picone, M. Finazzi, L. Duò and F. Ciccacci, Scanning tunneling microscopy investigation of CoO/Fe(001) and Fe/CoO/Fe(001) layered structures, Surf. Sci., 2011, 605, 95-100 CrossRef CAS.
26. A. Calloni, G. Berti, A. Brambilla, M. Riva, A. Picone, G. Bussetti, M. Finazzi, F. Ciccacci and L. Duò, Electron spectroscopy investigation of the oxidation of ultra-thin films of Ni and Cr on Fe(001), J. Phys.: Condens. Matter, 2014, 26, 445001 CrossRef CAS PubMed.
27. M. Riva, A. Picone, G. Bussetti, A. Brambilla, A. Calloni, G. Berti, L. Duò, F. Ciccacci and M. Finazzi, Oxidation effects on ultrathin Ni and Cr films grown on Fe (001): a combined scanning tunneling microscopy and Auger electron spectroscopy study, Surf. Sci., 2014, 621, 55-63 CrossRef CAS.
28. X. Li, Y. C. Chang, J. Y. Chen, K. W. Lin, R. D. Desautels, J. van Lierop and P. W. T. Pong, Annealing effect of NiO/Co90Fe10 thin films: from bilayer to nanocomposite, Phys. Lett. A, 2018, 382, 2886 CrossRef CAS.
29. A. Kozioł-Rachwał, W. Janus, M. Szpytma, P. Dróżdż, M. Ślęzak, K. Matlak, M. Gajewska, T. Ślęzak and J. Korecki, Interface engineering towards enhanced exchange interaction between Fe and FeO in Fe/MgO/FeO epitaxial heterostructures, Appl. Phys. Lett., 2019, 115, 141603 CrossRef.
30. S. S. Parihar, H. L. Meyerheim, K. Mohseni, S. Ostanin, A. Ernst, N. Jedrecy, R. Felici and J. Kirschner, Structure of O/Fe(001)-p(1 × 1) studied by surface X-ray diffraction, Phys. Rev. B: Condens. Matter Mater. Phys., 2010, 81, 075428 CrossRef.
31. A. Picone, A. Brambilla, A. Calloni, L. Duò, M. Finazzi and F. Ciccacci, Oxygen-induced effects on the morphology of the Fe(001) surface in out-of-equilibrium conditions, Phys. Rev. B: Condens. Matter Mater. Phys., 2011, 83, 235402 CrossRef.
32. F. Donati, P. Sessi, S. Achilli, A. Li Bassi, M. Passoni, C. S. Casari, C. E. Bottani, A. Brambilla, A. Picone and M. Finazzi, et al., Scanning Tunneling Spectroscopy of the Fe(001)-p(1 × 1)O Surface, Phys. Rev. B: Condens. Matter Mater. Phys., 2009, 79, 195430 CrossRef.
33. A. Tange, C. L. Gao, B. Y. Yavorsky, I. V. Maznichenko, C. Etz, A. Ernst, W. Hergert, I. Mertig, W. Wulfhekel and J. Kirschner, Electronic Structure and Spin Polarization of the Fe(001)-p(1 × 1)O Surface, Phys. Rev. B: Condens. Matter Mater. Phys., 2010, 81, 195410 CrossRef.
34. G. Mariotto, S. Murphy and I. V. Shvets, Charge ordering on the surface of Fe3O4(001), Phys. Rev. B: Condens. Matter Mater. Phys., 2002, 66, 245426 CrossRef.
35. B. Stanka, W. Hebenstreit, U. Diebold and S. A. Chambers, Surface reconstruction of Fe3O4(001), Surf. Sci., 2000, 448, 49-63 CrossRef CAS.
36. R. Bliem, E. McDermott, P. Ferstl, M. Setvin, O. Gamba, J. Pavelec, M. A. Schneider, M. Schmid, U. Diebold, P. Blaha, L. Hammer and G. S. Parkinson, Subsurface cation vacancy stabilization of the magnetite (001) surface, Science, 2014, 346, 1215-1218 CrossRef CAS PubMed.
37. N. C. Bartelt, S. Nie, E. Starodub, I. Bernal-Villamil, S. Gallego, L. Vergara, K. F. McCarty and J. de la Figuera, Order-disorder phase transition on the (100) surface of magnetite, Phys. Rev. B: Condens. Matter Mater. Phys., 2013, 88, 235436 CrossRef.
38. B. Arndt, B. A. J. Lechner, A. Bourgund, E. Grånäs, M. Creutzburg, K. Krausert, J. Hulva, G. S. Parkinson, M. Schmid, V. Vonk, F. Esch and A. Stierle, Order-disorder phase transition of the subsurface cation vacancy reconstruction on Fe3O4(001), Phys. Chem. Chem. Phys., 2000, 22, 8336 RSC.
39. R. Gargallo-Caballero, L. Martin-Garcia, A. Quesada, C. Granados-Miralles, M. Foerster and L. Aballe, et al., Co on Fe3O4(001): towards precise control of surface properties, J. Chem. Phys., 2016, 144, 094704 CrossRef PubMed.
40. A. G. Sault, Quantitative analysis of Auger lineshapes of oxidized iron, Appl. Surf. Sci., 1994, 74, 249-262 CrossRef CAS.
41. M. Riva, A. Picone, G. Bussetti, A. Brambilla, A. Calloni, G. Berti, L. Duò, F. Ciccacci and M. Finazzi, Oxidation effects on ultrathin Ni and Cr films grown on Fe(001): a combined scanning tunneling microscopy and Auger electron spectroscopy study, Surf. Sci., 2014, 621, 55-63 CrossRef CAS.
42. D. Stoltz, A. Önsten, U. O. Karlsson and M. Göthelid, Scanning Tunneling Microscopy of Fe-and O-sublattices on Fe3O4(001), Ultramicroscopy, 2008, 108, 540-544 CrossRef CAS PubMed.
43. G. Ketteler, W. Weiss, W. Ranke and R. Schlogl, Bulk and surface phases of iron oxides in an oxygen and water atmosphere at low pressure, Phys. Chem. Chem. Phys., 2001, 3, 1114-1122 RSC.
44. F. Genuzio, A. Sala, T. Schmidt, D. Menzel and H.-J. Freund, Interconversion of α-Fe2O3 and Fe3O4 thin films: mechanisms, morphology, and evidence for unexpected substrate participation, J. Phys. Chem. C, 2014, 118, 29068-29076 CrossRef CAS.

This journal is © The Royal Society of Chemistry 2021
