Ohm’s law states that
“the current through a conductor between two points is directly proportional to the potential difference or voltage across the two points, and inversely proportional to the resistance between them”.
Ohm’s law can be expressed as
I = U / R (1)
where
I = electrical current (ampere, A)
U = electrical potential difference, voltage (volts, V)
R = electrical resistance (ohms, Ω)
Example – Ohm’s law
A 12 volt battery supplies power to a resistance of 18 ohms. The current in the elctrical circuit can be calculated as
I = (12 volts) / (18 ohm)
= 0.67 ampere
- download Ohm’s law as pdf-file

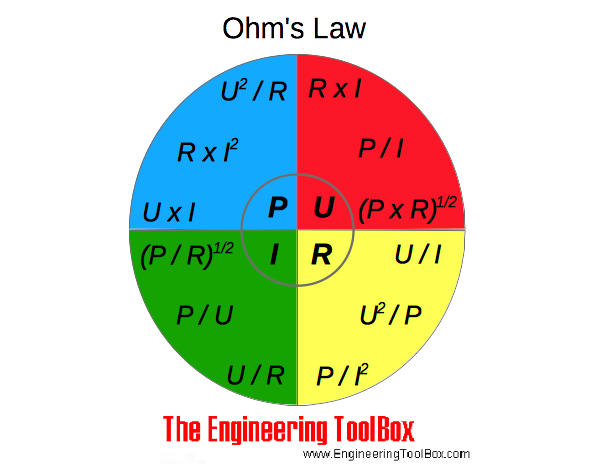

Equivalent Expressions of Ohm’s Law
Ohm’s law (1) can also be expressed as
U = R I (2)
or
R = U / I (3)

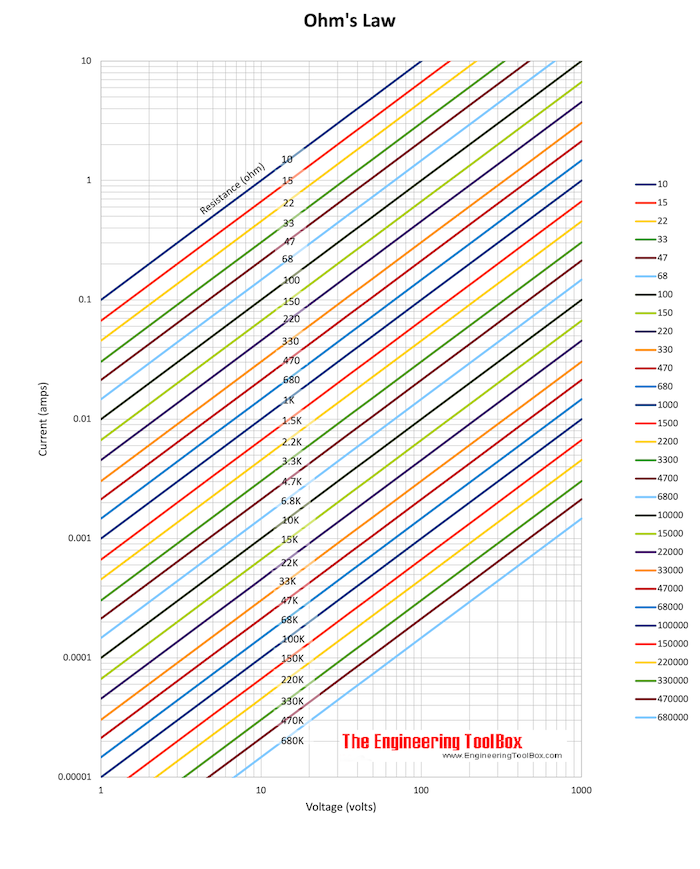

Download and print the Ohm’s Law diagram !
Example – Electric Circuit Resistance
A current of 1 ampere is flowing through a 230 V electric circuit. From the diagram above this indicates resistance
R ≈ 220 Ω
This can alternatively be calculated with Ohm’s law
R = (230 V) / (1 A)
= 230 Ω
Example – Ohm’s Law and Multiples and Submultiples
Currents, voltages and resistances in electric circuits may often be very small or very large – so multiples and submultiples are often used.
The voltage required applied to a 3.3 kΩ resistor to generate a current of 20 mA can be calculated as
U = (3.3 kΩ) (1000 Ω/kΩ) (20 mA) (10-3 A/mA)
= 66 V

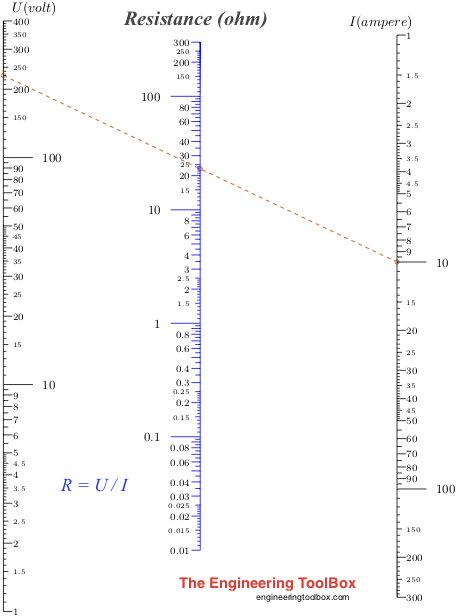

Electric Resistance Nomogram
Download and print the Electric Resistance vs. volt and ampere nomogram!
The default values in the nomogram above indicates 230 volts , resistance 24 ohm and current 10 amps .
Power dissipated Resistors
Electric power in resistor circuit can be expressed as
P = U I
= R I2
= U2 / R (4)
where
P = electrical power (watts, W)
Example – Power Consumed
The power consumed or dissipated in the 18 ohm resistor in the 12V electrical circuit above can be calculated as
P = (12 volts)2 / (18 ohm)
= 8 W
Example – Power and Electrical Resistance
A 100 W electric light bulb is connected to a 230 V supply. The current flowing can be calculated by reorganizing (4) to
I = P / U
= (100 W) / (230 V)
= 0.43 ampere
The resistance can be calculated by reorganizing (4) to
R = U2 / P
= (230 V)2/ (100 W)
= 529 Ω

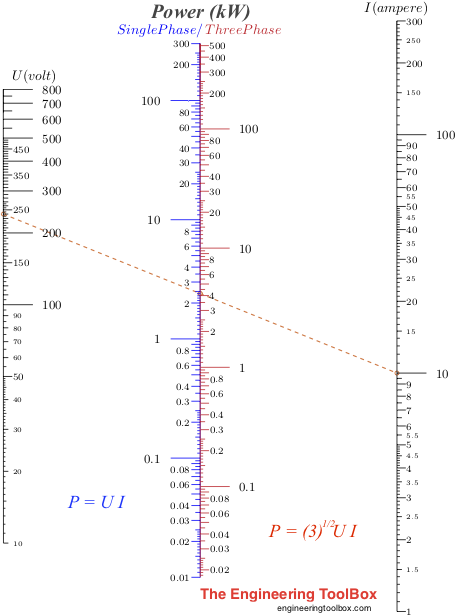

Electric Power Nomogram
This nomogram can be used to estimate power vs. voltage and ampere.
Download and print the Electric Power vs. volt and ampere nomogram!
The default values in the nomogram above indicates 240 volts , resistance 10 amps and power 2.4 kW for DC or single phase AC – and 4 kW for three phase AC.
